Hello, Jason, Could you please check followings? And, could you please check there is any problem in phase 1,2 requirements first? phase 1 * set a property when the STB wakes up from passive standby mode by KEYCODE_POWER * the property name : sys.stb.passive.on.reason * Requirements 1. current status of STB is active standby mode KEYCODE_POWER is encountered, STB will wake up. Don't need to set sys.stb.passive.on.reason property. 2. current status of STB is passive standby mode KEYCODE_POWER is encountered, STB will wake up from passive. sys.stb.passive.on.reason property should be set as "power_key" 3. current status of STB is AC power off if the AC power is connected, STB will wake up. Don't need to set sys.stb.passive.on.reason property. 4. monitor the sys.stb.on property if the sys.stb.on property changes to 0, sys.stb.passive.on.reason property should be set as ""(null). phase 2 * possible to wake up from passive standby mode by NETFLIX_KEY(SA02 RCU) and set a property * I will explain more when the phase 1 is done Thank you. Sangmin Choi. |
|
|
Hello, Jason, Could you please let me know your opinion about requirements? And, it looks SKB wants this feature soon, so we should prepare about this. Thank you. Sangmin Choi. |
|
|
Hi Sangmin, Which UI branch does SKB want to apply to? I am working on NTS, Google cert. I can not check it now. Thanks, Jason |
|
|
Hello, Jason, It should be applied to 542 branches. I will check the schedule with YK. Thank you. Sangmin Choi. |
|
|

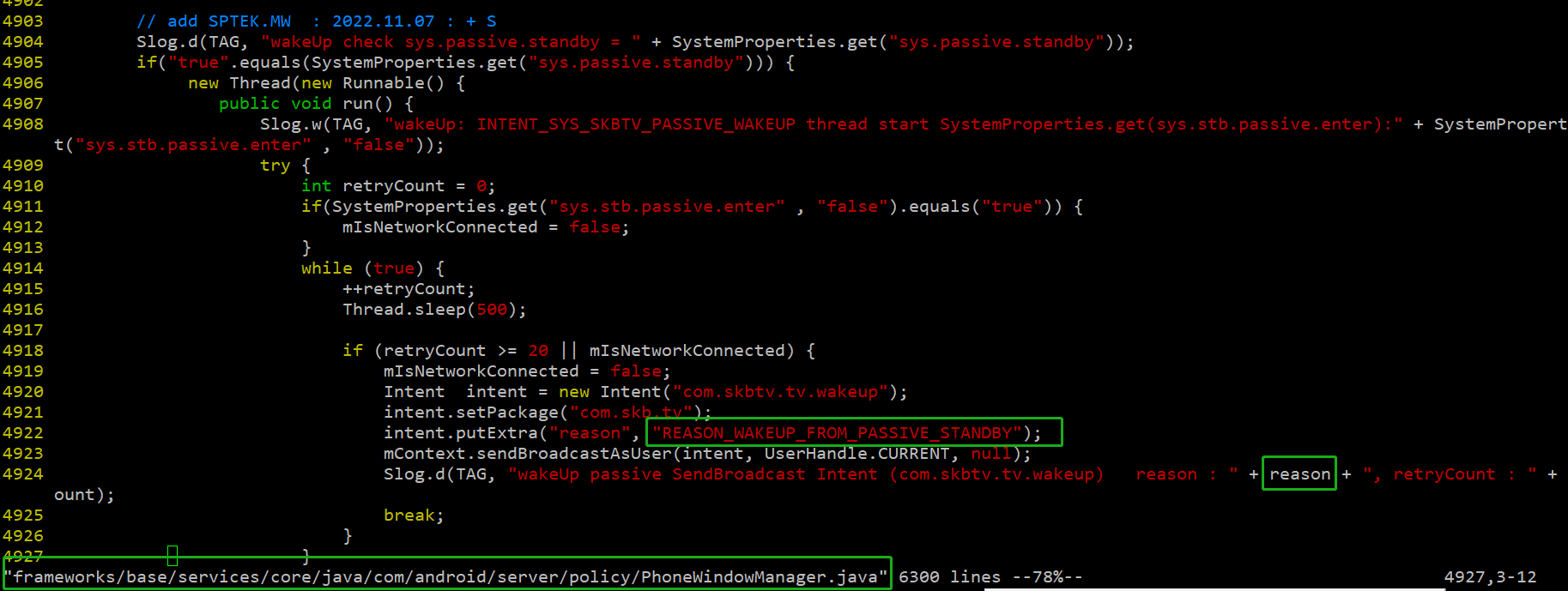

Hi Sangmin, I have a question, It's common request, I think Intek also receive it, Can't SPTEK Implement by themselves? I found that SPTEK already implemented the detect function in their code. They only need to check if the "reason" is keyevent. (Actually, in current situation, only POWERKEY can wake device from passive standby), then, they can write the reason to property. Thanks, Jason wakeup.png (79,563 bytes) |
|
|
Hello, Jason, I'm checking it can be implemented by SPTEK or not, but we should implement it by ourselves. There are many devices the SoC or manufacturer is different, so SPTEK can't deal all cases. SPTEK and SKB want to set the sys.stb.passive.on.reason by manufacturer. Please implement followings. * set a property when the STB wakes up from passive standby mode by KEYCODE_POWER or KEYCODE_SKB_FUNC_57(Netflix button of SA02 RCU) * the property name : sys.stb.passive.on.reason * Requirements 1. current status of STB is active standby mode KEYCODE_POWER or KEYCODE_SKB_FUNC_57 is encountered, STB will wake up. Don't need to set sys.stb.passive.on.reason property. 2. current status of STB is passive standby mode 2.1 KEYCODE_POWER is encountered, STB will wake up from passive. sys.stb.passive.on.reason property should be set as "power_key" 2.2 KEYCODE_SKB_FUNC_57 is encountered, STB will wake up from passive. sys.stb.passive.on.reason property should be set as "netflix_key" 3. current status of STB is AC power off if the AC power is connected, STB will wake up. Don't need to set sys.stb.passive.on.reason property. About reset the sys.stb.passive.on.reason property, I will check it with SPTEK who can reset this property. And, the SA02 RCU you received has no Netflix hotkey, so you can't test the function that wake up STB from passive standby using Netflix button. So, please give me the test firmware then I will test that function. Finally, I'm sorry but this function should be implemented until tomorrow. Thank you. Sangmin Choi. |
|
|

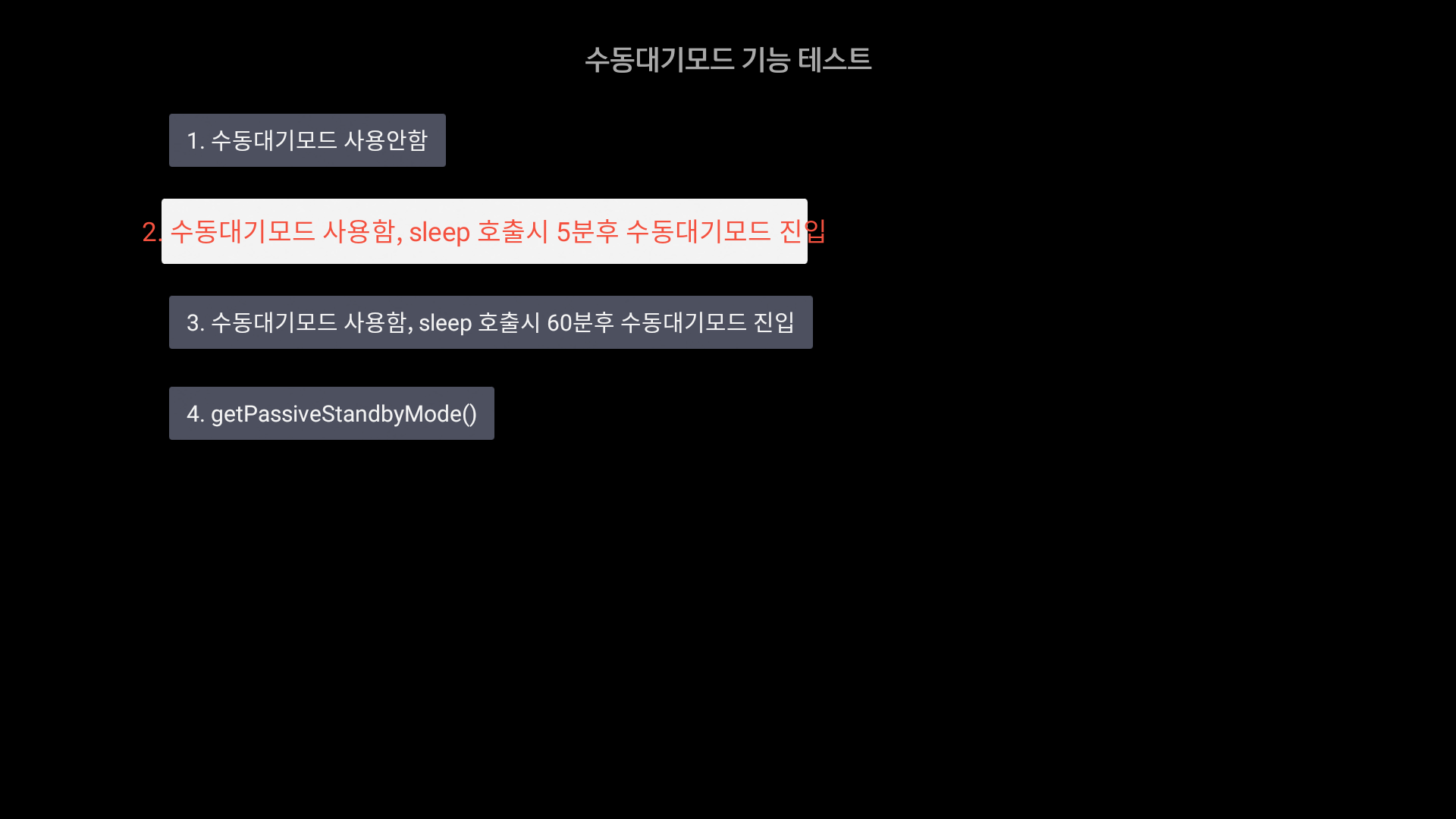

Hi Sangmin, >>I'm sorry but this function should be implemented until tomorrow. We can not guarantee it. >> KEYCODE_SKB_FUNC_57 is encountered, STB will wake up from passive. >> sys.stb.passive.on.reason property should be set as "netflix_key" In passive standby, we need to use RCU's IR to wake up the device, What is the IR code of KEYCODE_SKB_FUNC_57? KEYCODE_SKB_FUNC_57 is android key code, but we need to know the IR code of Netflix button. And how to enter to passive standby? we used hot key to enter passive standby in development stage. How to enter passive standby by normal method? Thanks, Jason |
|
|
Hello, Jason, >>I'm sorry but this function should be implemented until tomorrow. (FXN) We can not guarantee it. (ALT) Thank you, I understand. >> KEYCODE_SKB_FUNC_57 is encountered, STB will wake up from passive. >> sys.stb.passive.on.reason property should be set as "netflix_key" (FXN) In passive standby, we need to use RCU's IR to wake up the device, What is the IR code of KEYCODE_SKB_FUNC_57? KEYCODE_SKB_FUNC_57 is android key code, but we need to know the IR code of Netflix button. (ALT) The IR code of KEYCODE_SKB_FUNC_57 is 0x6A95, 0x6A59. But, your SA02 RCU can't encounter this keycode. You can test using other IR code and if there is no problem then provide me the test firmware the keycode is changed. (FXN) And how to enter to passive standby? we used hot key to enter passive standby in development stage. How to enter passive standby by normal method? (ALT) There is no way to enter passive standby by normal method. You can enter passive standby by hidden menu. In live channel, press * 5 6 7 8 #. You can see the attached screen and select number 2, the toast message will be appear. Press the power button to enter sleep mode, and wait 5 minutes the STB will enter the passive standby. passive_standby.png (79,723 bytes) |
|
|
Hello, Jerry, Could you please let me know current status? Thank you. Sangmin Choi. |
|
|
Hi Sangmin , I will check the following code , it seems to default netflix key and check the reason value in framework. jerry@010870-build57-workstation:~/project/Eagle/BFX_AT100_A12/bootloader/uboot-repo/bl33/v2015$ git diff . diff --git a/arch/arm/cpu/armv8/g12a/firmware/scp_task/scp_remote.c b/arch/arm/cpu/armv8/g12a/firmware/scp_task/scp_remote.c index ebd3a11eaa..5fd9d8097e 100644 --- a/arch/arm/cpu/armv8/g12a/firmware/scp_task/scp_remote.c +++ b/arch/arm/cpu/armv8/g12a/firmware/scp_task/scp_remote.c @@ -28,8 +28,8 @@ typedef struct remote_pwrkeys { }remote_pwrkeys_t; remote_pwrkeys_t pwr_keys_list; -unsigned int usr_pwr_key = 0x3ac5bd02; // map 'info' to 'netflix' - +//unsigned int usr_pwr_key = 0x3ac5bd02; // map 'info' to 'netflix' +unsigned int usr_pwr_key = 0x96697f80; // map 'info' to 'netflix' <== this key is OTT key. //24M static const reg_remote RDECODEMODE_NEC[] = { {AO_MF_IR_DEC_LDR_ACTIVE, 500 << 16 | 400 << 0}, 02-01 16:15:31.143 3719 9237 I WindowManager: wakeUp passive SendBroadcast Intent (com.skbtv.tv.wakeup) sys.stb.passive.on.reason : power_key 02-01 16:15:31.144 3719 9237 I WindowManager: wakeUp passive SendBroadcast Intent (com.skbtv.tv.wakeup) reason : 6, retryCount : 7 <== check the reason when netflix key press. Jerry |
|
|
Hi jerry Until what time can this function be applied? We need to proceed with netflix test with FW with this function applied Thank you YK.Jung |
|
|
Hi YK, Please help to apply this patch to check to turn on TV via Netflix button. 1. cd bootloader/uboot-repo/bl33/v2015 2. git apply patch_netflix Jerry patch_netflix (989 bytes) |
|
|
Hi Jerry Lin The test result of patch_netflix is ok Please also set up the property. > If STB wake up from passive standby with netflix key sys.stb.passive.on.reason netflix_key > If STB wake up from passive standby with power key sys.stb.passive.on.reason power_key > If the STB enters the sleep state sys.stb.passive.on.reason (null) If you have any questions, please contact me. Thank you YK.Jung |
|
|
Hi Jerry This feature is not yet implemented, causing netflix failure Please check it quickly and update the progress Thank you YK.Jung |
|
|
Hi Jerry I received feedback from amlogic . Please review the contents. ================================================================================================= 1. patch_netflix - The patch is how to add a new key value to the POWER KEY list. - The key value of the Netflix button has been added as one of POWER KEY, so it will wake up to reason 2. - Please remove the patch_netflix you made. 2. There is a REMOTE_CUS_KEY method to handle Netflix keys separately. - (note)If patch_netflix is not removed, the code below will not work. - See diff below. diff --git a/arch/arm/cpu/armv8/g12a/firmware/scp_task/scp_remote.c b/arch/arm/cpu/armv8/g12a/firmware/scp_task/scp_remote.c index ebd3a11eaa..bac6d512ae 100644 --- a/arch/arm/cpu/armv8/g12a/firmware/scp_task/scp_remote.c +++ b/arch/arm/cpu/armv8/g12a/firmware/scp_task/scp_remote.c @@ -28,7 +28,7 @@ typedef struct remote_pwrkeys { }remote_pwrkeys_t; remote_pwrkeys_t pwr_keys_list; -unsigned int usr_pwr_key = 0x3ac5bd02; // map 'info' to 'netflix' +unsigned int usr_pwr_key = 0x956a7f80; // map 'info' to 'netflix' //24M static const reg_remote RDECODEMODE_NEC[] = { 3. The kernel must be registered to process Netflix keys. diff --git a/keyboards/Aml_keypad.kl b/keyboards/Aml_keypad.kl index 648b4b0..ddf8fdb 100644 --- a/keyboards/Aml_keypad.kl +++ b/keyboards/Aml_keypad.kl @@ -572,6 +572,7 @@ key 541 SKB_FUNC_17 # 0x21d key 542 SKB_FUNC_17 # 0x21e key 543 SKB_FUNC_17 # 0x21f +key 133 F2 WAKE # VaS, end add SKB RCU by Logan@20190412 4. needs further review: Netflix key values are different in passieve standby mode. When pressing the Netflix key in deep sleep /dev/input/event3: 0001 0085 00000001 /dev/input/event3: 0000 0000 00000000 /dev/input/event3: 0001 0085 00000000 /dev/input/event3: 0000 0000 00000000 When pressing the Netflix key in normal /dev/input/event3: 0001 01d2 00000001 /dev/input/event3: 0000 0000 00000000 /dev/input/event3: 0001 01d2 00000000 /dev/input/event3: 0000 0000 00000000 =========================================================================================== please check it Thank you YK.Jung |
|
|
Hi YK , commit done! Jerry |
|
|
|
|
|
|
|
|
Hello, Kinbay, Now, Eagle can wake up from passive standby mode using power key and netflix key. SKB wants to add one more key to wake up from passive standby mode. IR code Mode1 : Custom code(0x807F), keycode(0x6B94) Mode2 : Custom code(0xF5A0), keycode(0x6B49) And, if the STB wakes up from passive standby using above key, the sys.stb.passive.on.reason property should be set as "bplay_key". Please check this comment and please let me know the schedule to implement it. Thank you. Sangmin Choi. |
|
|
Hi Mr. Sangmin Choi, This issue will be assigned to Jerry since he is more familiar with it. Thank you! |
|
|
Hello, Kerwin, Okay I see. Thank you! |
|
|
Hello, Jerry, Could you please update current status of this issue? Is it possible to complete until tomorrow? Thank you. Sangmin Choi. |
|
|
Hi Sangmin, Do you know which SKB FUNC KEY for this "bplay_key" ? I remember the netflix key is KEYCODE_SKB_FUNC_57. The following is commit log for netflix key. jerry@010870-build57-workstation:~/project/Eagle/BFX_AT100_A12$ rp show 8baa581fbe27 ====> project: frameworks/base commit 8baa581fbe2767cf826437b68da2672656e5fb19 Author: jerry <liang-chyi.lin@fii-foxconn.com> Date: Tue Feb 6 17:22:22 2024 +0800 [BPM-28602] Set a property when the STB wakes up from passive standby mode. [3/5] diff --git a/services/core/java/com/android/server/policy/PhoneWindowManager.java b/services/core/java/com/android/server/policy/PhoneWindowManager.java index 962d19338dda..b1fff2f7b7d2 100755 --- a/services/core/java/com/android/server/policy/PhoneWindowManager.java +++ b/services/core/java/com/android/server/policy/PhoneWindowManager.java @@ -3879,8 +3879,17 @@ public class PhoneWindowManager implements WindowManagerPolicy { || event.isWakeKey(); //VaS, ignore event.isWakeKey() defined in KeyEvent.java - if("true".equals(SystemProperties.get("sys.passive.standby"))) - isWakeKey = (policyFlags & WindowManagerPolicy.FLAG_WAKE) != 0; + if("true".equals(SystemProperties.get("sys.passive.standby"))) { + isWakeKey = (policyFlags & WindowManagerPolicy.FLAG_WAKE) != 0; + if(isWakeKey) { + if("true".equals(SystemProperties.get("sys.stb.passive.enter"))) { + if(keyCode == KeyEvent.KEYCODE_POWER) + SystemProperties.set("sys.stb.passive.on.reason", "power_key"); + else if (keyCode == KeyEvent.KEYCODE_SKB_FUNC_57) + SystemProperties.set("sys.stb.passive.on.reason", "netflix_key"); + } + } + } Jerry |
|
|
Hello, Jerry, The Android keyevent of bplay_key is KEYCODE_SKB_FUNC_58. Thank you. Sangmin Choi. |
|
|
Hi Sangmin. Thanks. Do you know how to verifty this feature ? I have SA02's RCU. but i can not find the key "OTT Shortcut 2". Jerry |
|
|
Hello, Jerry, I think you have old version of SA02 RCU. Please give me the test firmware, I will test it. FYI, we're preparing to send final SA02 samples to FII. Thank you. Sangmin Choi. |
|
|
Hi Sangmin , I upload the SD test FW to ALT Server. Please download and help to verify it. link: /release_by_fxn/smart3_test/20240412_mantis1879/usb_bfx-at100_V15.542.35.zip Jerry |
|
|
Hi Jerry, After test your FW, it seems bplay_key is working but there are some issue is occurring. 1. When press bplay_key one time in passive standby mode, STB is not wake up but wake up when pressed bplay_key twice in succession. -> When press Netflix or power key, this issue is not occur 2. When press bplay_key one time in passive standby mode, LED is changed for a moment to white / red and changed blue. 3. When wake up on passive standby mode, sometimes network error popop is occur. Please refer attached video. Thank you. Kim 20240415_131729.mp4 (12,324,588 bytes) |
|
|
Hi Kim , Do you have some log about issue 1 ? If yes , please provide to me. Jerry |
|
|
Hi Jerry, Please guide me how can I get the log. As I know that when enter passive standby mode, USB / serial could not connected so I can not get the log. Thank you. Kim |
|
|
Hi Jerry, About issue 1~2, similar issue was reported from INTEK to SPTEK. SPTEK has fixed this issue to vendor/skb/framework/btf. ==================================================================================== commit ea20f8c39d37bde07def552c46b8f4fc4e1d1a33 (HEAD, skb_bcf/BTF_API_LEVEL_8, m/BFX-AT100_5.4.2) Author: echwang <echwang@sptek.co.kr> Date: Tue Apr 16 10:10:57 2024 +0900 [BTVD-20850] [Stability] [ANR] com.skb.btv.framework.property.IPropertyService$Stub$Proxy.getString ; Monkey test ExecutorService 의 instance를 local 변수로 사용하던 부분을 전역변수로 선언하여 한번만 생성하도록 수정 VERSION_NUM = "_8.1.11"; BUILD_DATE = "2024.04.16"; android:versionName="8.1.11" JNU: BUILD_DATE = "24.04.16"; ==================================================================================== Please apply btf commit and your modification. And please share the test FW. I will check it again. Thank you. Kim |
|
|
Hi Kim, I upload the SD test FW to ALT Server. Please download and help to verify it. link: /release_by_fxn/smart3_test/20240416_mantis1879/usb_bfx-at100_V15.542.35.zip Jerry |
|
|
Hi Jerry, I have tested your FW and the issues are still occurring. I think we have to check the log but I can not get log in passive standby mode. Could you please help get the log when issue occurring? Thank you. Kim |
|
|
Hi Kim, I have no SA02's RCU for this "bplay_key" key. I think you can use "logcat -G 32M" to add buffer size of logcat . And you can use "logcat -v time >/data/log.txt" when leave passive standby mode. Jerry |
|
|
Hi, Jerry I have attached log file when press bplay_key from apply your guide. 04-17 10:02:50 -> pressed bplay_key. LED was blink once and remain BLUE 04-17 10:02:55 -> pressed power key 04-17 10:02:58 -> wake up Please check log file. Thank you. Kim |
|
|
Hi Kim, I add my patch file in this mantis. I add a new type (REMOTE_CUS_WAKEUP1) for bplay key. Because the REMOTE_CUS_WAKEUP is used for netflix key. I check with serial log , i can find the following message: // The following is for Bplay key , but i use OTT key to test. bl30 get wakeup sources! process command 00000006 bl30 enter suspend! drate =24000000 Little core clk suspend rate 1800000000 store restore gp0 pll suspend_counter: 7 Enter ddr suspend ddr suspend time: 50us alarm=0S process command 00000001 use vddee new table! customer pwrkeys for IR is 0x96697f80 use vddee new table! exit_reason:0x0d <== 0x0d is 13 (REMOTE_CUS_WAKEUP1) , this is my define value for bplay key. Enter ddr resume DMC_DRAM_STAT3: 0x544 ddr resume time: 3337us store restore gp0 pll cfg15 d3b01000 cfg15 d3b01000 Little core clk resume rate 1800000000 [ 530.560662] meson-remote ff808040.rc: remote suspend [ 530.861707] meson-remote ff808040.rc: remote resume [ 530.861715] meson-remote ff808040.rc: default protocol = 0x1 and id = 0 [ 530.861718] meson-remote ff808040.rc: reg=0x0, val=0x1f40190 [ 530.861721] meson-remote ff808040.rc: reg=0x4, val=0x12c00c8 [ 530.861723] meson-remote ff808040.rc: reg=0x8, val=0x960050 [ 530.861726] meson-remote ff808040.rc: reg=0xc, val=0x480028 [ 530.861729] meson-remote ff808040.rc: reg=0x10, val=0x70fa0013 [ 530.861732] meson-remote ff808040.rc: reg=0x18, val=0x8616800 [ 530.861734] meson-remote ff808040.rc: reg=0x1c, val=0x9f00 [ 530.861737] meson-remote ff808040.rc: reg=0x20, val=0x0 [ 530.861740] meson-remote ff808040.rc: reg=0x24, val=0x0 [ 530.861742] meson-remote ff808040.rc: reg=0x28, val=0x0 [ 530.861765] meson-remote ff808040.rc: framecode=0x0 [ 530.861768] meson-remote ff808040.rc: receive repeat <== No REMOTE_CUS_WAKEUP1 event from get_resume_method() in remote_meson.c. <== I don't know why the get_resume_method() is not return "REMOTE_CUS_WAKEUP1". <== I think that the netflix key will return "REMOTE_CUS_WAKEUP" // The follwing message is for Power key. bl30 get wakeup sources! process command 00000006 bl30 enter suspend! drate =24000000 Little core clk suspend rate 1800000000 store restore gp0 pll suspend_counter: 8 Enter ddr suspend ddr suspend time: 49us alarm=0S process command 00000001 use vddee new table! customer pwrkeys for IR is 0xf708fb04 customer pwrkeys for IR is 0xfe017f80 use vddee new table! exit_reason:0x02 <=== The value 2 (REMOTE_WAKEUP) is POWER key. Enter ddr resume ddr resume time: 146us store restore gp0 pll cfg15 d3b01000 cfg15 23b01000 Little core clk resume rate 1800000000 [ 532.360511] meson-remote ff808040.rc: remote suspend [ 532.669556] meson-remote ff808040.rc: remote resume [ 532.669564] meson-remote ff808040.rc: default protocol = 0x1 and id = 0 [ 532.669567] meson-remote ff808040.rc: reg=0x0, val=0x1f40190 [ 532.669570] meson-remote ff808040.rc: reg=0x4, val=0x12c00c8 [ 532.669573] meson-remote ff808040.rc: reg=0x8, val=0x960050 [ 532.669575] meson-remote ff808040.rc: reg=0xc, val=0x480028 [ 532.669578] meson-remote ff808040.rc: reg=0x10, val=0x70fa0013 [ 532.669581] meson-remote ff808040.rc: reg=0x18, val=0x8616800 [ 532.669584] meson-remote ff808040.rc: reg=0x1c, val=0x9f00 [ 532.669587] meson-remote ff808040.rc: reg=0x20, val=0x0 [ 532.669589] meson-remote ff808040.rc: reg=0x24, val=0x0 [ 532.669592] meson-remote ff808040.rc: reg=0x28, val=0x0 [ 532.669596] meson-remote ff808040.rc: remote resume from REMOTE_WAKEUP <==== get_resume_method() is return REMOTE_WAKEUP and send POWER Key event from ir driver. [ 532.669693] meson-remote ff808040.rc: framecode=0x0 [ 532.669696] meson-remote ff808040.rc: receive scancode=0x0 [ 532.669702] meson-remote ff808040.rc: invalid custom:0x0 [ 532.669705] meson-remote ff808040.rc: cur_custom is nulll [ 532.669709] meson-remote ff808040.rc: keypressed=0x0 [ 532.669711] meson-remote ff808040.rc: no valid key to handle Jerry diff_1879_20240417 (6,179 bytes) |
|
|
Hi Kim , Please also check with tag "0015093" in this mantis. Maybe Amlogic know how to add a new type for new key or they have idea for this new key. Jerry |
|
|
Hi Kim, I upload the SD test FW to ALT Server. Please download and help to verify it. I use OTT key to turn on SMART3 , it's ok. link: /release_by_fxn/smart3_test/20240417_mantis1879/usb_bfx-at100_V15.542.35.zip Jerry |
|
|
Hi Jerry. It works fine. Please commit your modification. Note that when you write comment to commit, please use BPM-28825 jira ticket. Thank you. Kim |
|
|
Hi Kim, commit done! Jerry |
|
|
Hi Jerry, Thank you for support. I close this issue. Kim |
